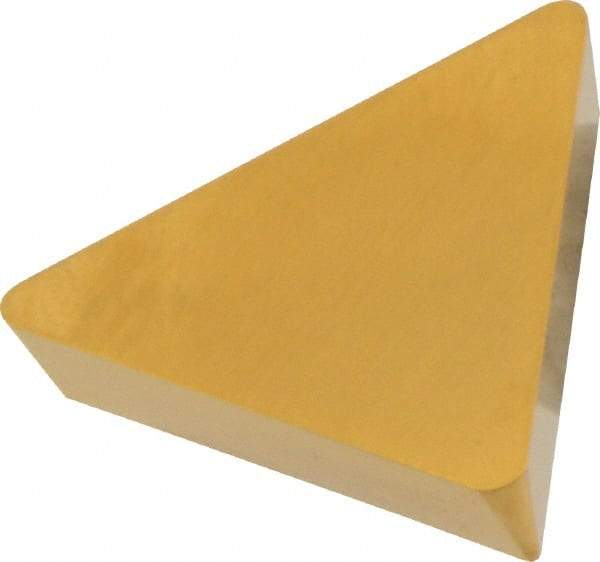

Seco - TPG322 Grade CP200 Carbide Turning Insert - TiAlN/TiN Finish, 60° Triangle, 3/8" Inscr Circle, 1/8" Thick, 1/32" Corner Radius
Item #: 86729977
Brand: Seco
Model #: 64908
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPG |
| Insert Size | 322 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Manufacturer's Grade | CP200 |
| Coating | TiAlN/TiN |
| Material Grade | Micrograin |
| Relief Angle | 11 |
| Coating Process | PVD |
| Included Angle | 60 |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Shape | Triangle |
