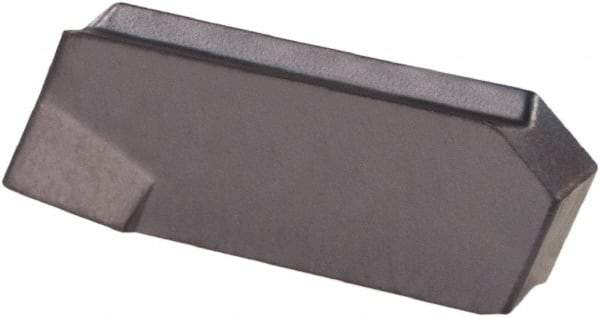

Iscar - GIM IC908 Grade, 0.126" Cutting Width, Carbide Cutoff Insert - 8° Right Hand Lead Angle, 0.0087" Cnr Rad, TiAlN Coated, Single End
Item #: 86684891
Brand: Iscar
Model #: 6403176
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | GIM |
| Lead Angle Direction | Right Hand |
| Lead Angle | 8 |
| Cutting Width (mm) | 3.20 |
| Cutting Width (Decimal Inch) | 0.1260 |
| Material Grade | C1/C2/C6/C7 |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Series | Cut-Grip |
| Relief Angle | 7 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.6024 |
| Corner Radius (Decimal Inch) | 0.0087 |
| Corner Radius (mm) | 0.22 |
| Insert Holding Method | Screw or Clamp |
