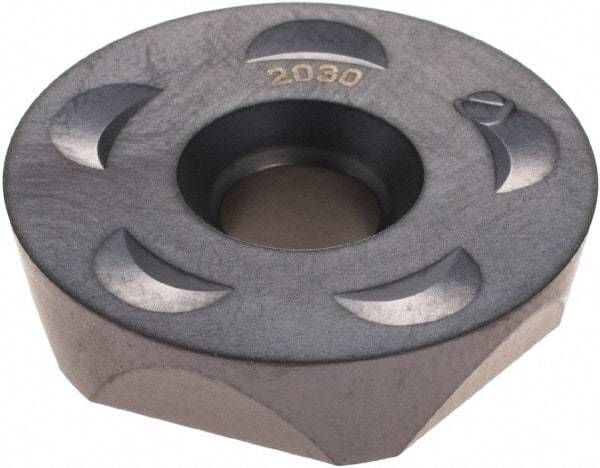

Ingersoll Cutting Tools - RPLB250700 Grade IN2030 Carbide Milling Insert - TiAlN Finish, 0.308" Thick, 1" Inscribed Circle, 1/2" Corner Radius
Item #: 86481876
Brand: Ingersoll Cutting Tools
Model #: 5805541
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RPLB |
| Insert Size | 250700 |
| Material | Carbide |
| Material Grade | C1/C5/C6 |
| Manufacturer's Grade | IN2030 |
| Coating | TiAlN |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Thickness (Decimal Inch) | 0.3080 |
| Corner Radius (Decimal Inch) | 0.5000 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Shape | Round |
| Insert Hand | Neutral |
| ISO Number | RPLB250700FN IN2030 |
