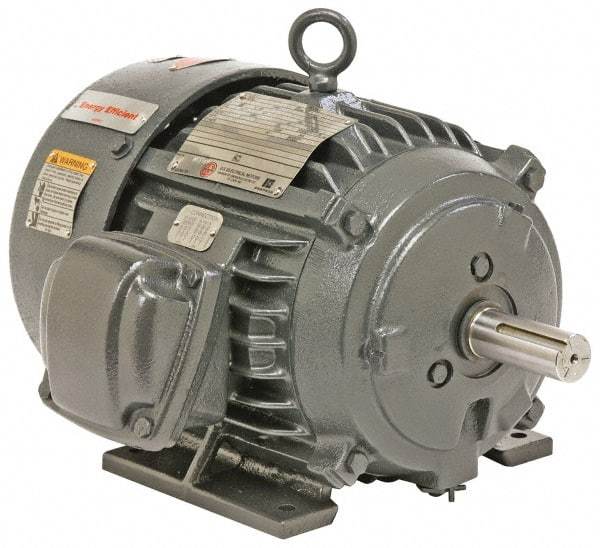

US Motors - 3 hp, TEFC Enclosure, No Thermal Protection, 865 RPM, 230/460 Volt, 60 Hz, Three Phase Standard Efficient Motor - Size 215 Frame, Rigid Mount, 1 Speed, Ball Bearings, 11.2/5.6 Full Load Amps, F Class Insulation, Reversible - USA Tool & Supply

US Motors - 3 hp, TEFC Enclosure, No Thermal Protection, 865 RPM, 230/460 Volt, 60 Hz, Three Phase Standard Efficient Motor - Size 215 Frame, Rigid Mount, 1 Speed, Ball Bearings, 11.2/5.6 Full Load Amps, F Class Insulation, Reversible


Item #: 86353588
Brand: US Motors
Model #: X3S4B
Exact Tooling IR#: 04

Product Specifications
Motor Type Three Phase Standard Efficient
Type of Enclosure TEFC
Horsepower 3
Thermal Protection Rating None
Name Plate RPMs 865
Voltage 230/460
Frequency Hz 60
Frame Size 215
Mount Type Rigid
Number of Speeds 1
Bearing Type Ball
Applications General Purpose
Full Load Amperage 11.2/5.6
Insulation Class F
Frame Material Cast Iron
Overall Length (Decimal Inch) 18.6900
Full Load Efficiency Rating 78.5
Service Factor Rating 1
Motor Rotation Reversible
PSC Code 6105
$2,810.67
