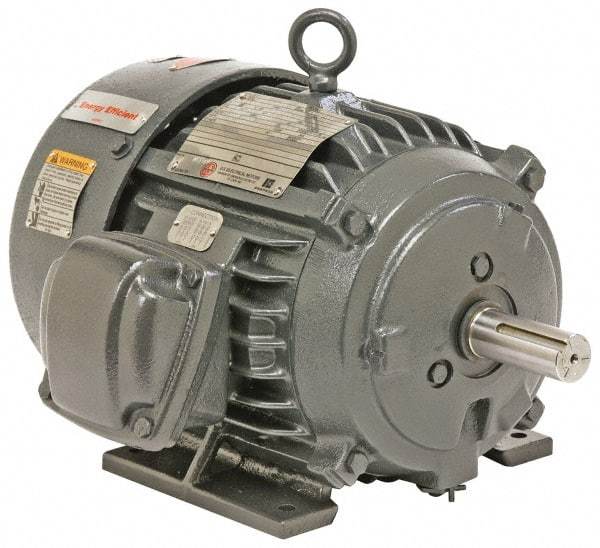

US Motors - 20 hp, TEFC Enclosure, No Thermal Protection, 1,770 RPM, 230/460 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 256 Frame, Rigid Mount, 1 Speed, Ball Bearings, 49/24.4 Full Load Amps, F Class Insulation, Reversible - USA Tool & Supply

US Motors - 20 hp, TEFC Enclosure, No Thermal Protection, 1,770 RPM, 230/460 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 256 Frame, Rigid Mount, 1 Speed, Ball Bearings, 49/24.4 Full Load Amps, F Class Insulation, Reversible


Item #: 86353489
Brand: US Motors
Model #: X20E2B
Exact Tooling IR#: 04

Product Specifications
Motor Type Three Phase Energy Efficient
Type of Enclosure TEFC
Horsepower 20
Thermal Protection Rating None
Name Plate RPMs 1770
Voltage 230/460
Frequency Hz 60
Frame Size 256
Mount Type Rigid
Number of Speeds 1
Bearing Type Ball
Applications General Purpose
Full Load Amperage 49/24.4
Insulation Class F
Frame Material Cast Iron
Overall Length (Decimal Inch) 25.3400
Full Load Efficiency Rating 91.7
Service Factor Rating 1
Motor Rotation Reversible
PSC Code 6105
$3,145.11
