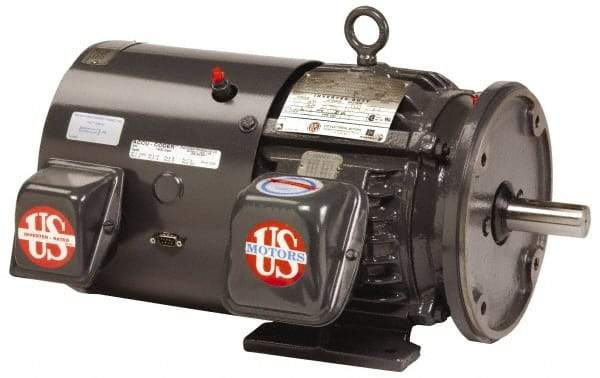

US Motors - 15 hp, TEFC Enclosure, No Thermal Protection, 1,180 RPM, 230/460 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 284 Frame, Rigid Mount, 1 Speed, Ball Bearings, 37/18.7 Full Load Amps, F Class Insulation, Reversible - USA Tool & Supply

US Motors - 15 hp, TEFC Enclosure, No Thermal Protection, 1,180 RPM, 230/460 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 284 Frame, Rigid Mount, 1 Speed, Ball Bearings, 37/18.7 Full Load Amps, F Class Insulation, Reversible


Item #: 86352721
Brand: US Motors
Model #: VB15T3B
Exact Tooling IR#: 04

Product Specifications
Motor Type Three Phase Premium Efficient
Type of Enclosure TEFC
Horsepower 15
Thermal Protection Rating None
Name Plate RPMs 1180
Voltage 230/460
Frequency Hz 60
Frame Size 284
Mount Type Rigid
Number of Speeds 1
Bearing Type Ball
Applications Definite Purpose
Full Load Amperage 37/18.7
Insulation Class F
Frame Material Cast Iron
Overall Length (Decimal Inch) 25.5000
Full Load Efficiency Rating 91.7
Service Factor Rating 1.15
Motor Rotation Reversible
PSC Code 6105
$9,255.55
