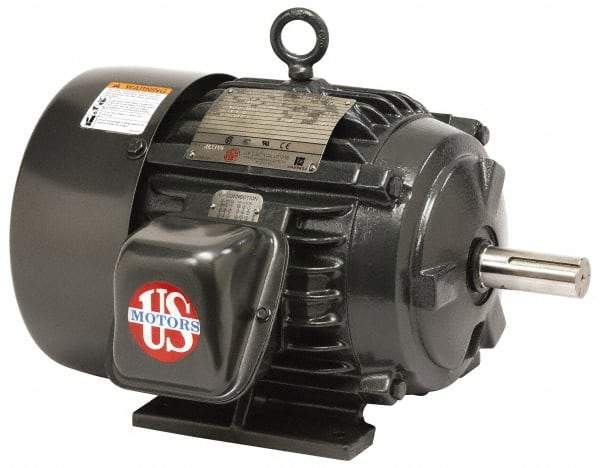

US Motors - 20 hp, TEFC Enclosure, No Thermal Protection, 1,775 RPM, 200 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 256 Frame, Rigid Mount, 2 Speed, Ball Bearings, 60 Full Load Amps, F Class Insulation, Reversible - USA Tool & Supply

US Motors - 20 hp, TEFC Enclosure, No Thermal Protection, 1,775 RPM, 200 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 256 Frame, Rigid Mount, 2 Speed, Ball Bearings, 60 Full Load Amps, F Class Insulation, Reversible


Item #: 86344934
Brand: US Motors
Model #: HW20EL9H2
Exact Tooling IR#: 04

Product Specifications
Motor Type Three Phase Energy Efficient
Type of Enclosure TEFC
Horsepower 20
Thermal Protection Rating None
Name Plate RPMs 1775
Voltage 200
Frequency Hz 60
Frame Size 256
Mount Type Rigid
Number of Speeds 2
Bearing Type Ball
Applications Special Application
Full Load Amperage 60
Insulation Class F
Frame Material Cast Iron
Overall Length (Decimal Inch) 25.5000
Full Load Efficiency Rating 90.2
Service Factor Rating 1.15
Motor Rotation Reversible
PSC Code 6105
$5,635.03
