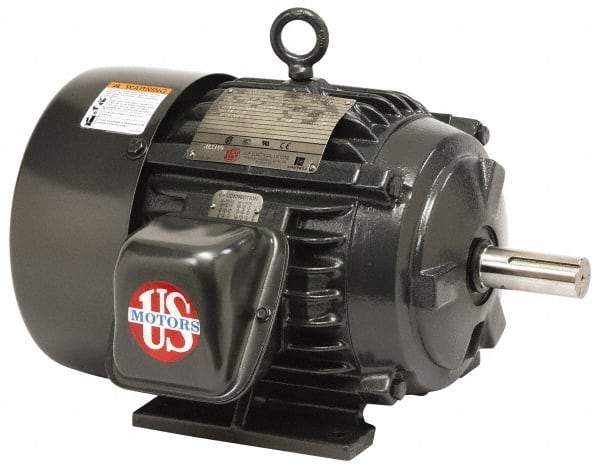

US Motors - 15 hp, TEFC Enclosure, No Thermal Protection, 1,770 RPM, 575 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 254 Frame, Rigid Mount, 1 Speed, Ball Bearings, 14.5 Full Load Amps, F Class Insulation, Reversible - USA Tool & Supply

US Motors - 15 hp, TEFC Enclosure, No Thermal Protection, 1,770 RPM, 575 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 254 Frame, Rigid Mount, 1 Speed, Ball Bearings, 14.5 Full Load Amps, F Class Insulation, Reversible


Item #: 86344843
Brand: US Motors
Model #: HW15V2G2
Exact Tooling IR#: 04

Product Specifications
Motor Type Three Phase Premium Efficient
Type of Enclosure TEFC
Horsepower 15
Thermal Protection Rating None
Name Plate RPMs 1770
Voltage 575
Frequency Hz 60
Frame Size 254
Mount Type Rigid
Number of Speeds 1
Bearing Type Ball
Applications Special Application
Full Load Amperage 14.5
Insulation Class F
Frame Material Cast Iron
Overall Length (Decimal Inch) 23.7500
Full Load Efficiency Rating 92.4
Service Factor Rating 1.15
Motor Rotation Reversible
PSC Code 6105
$4,034.59
