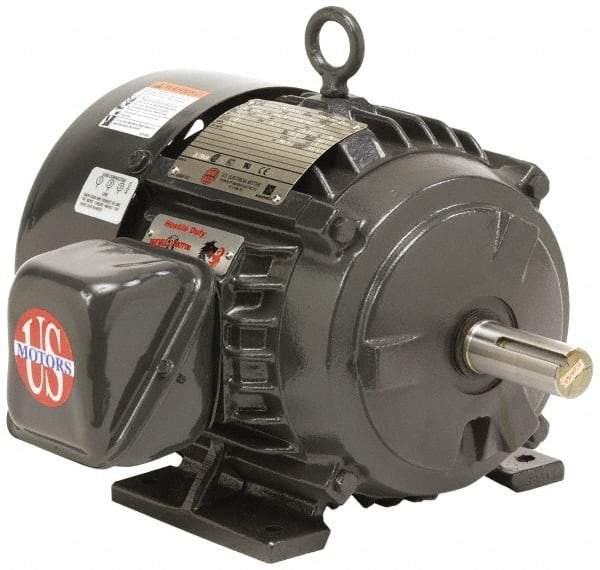

US Motors - 15 hp, TEFC Enclosure, No Thermal Protection, 3,545 RPM, 200 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 254 Frame, Rigid Mount, 1 Speed, Ball Bearings, 41 Full Load Amps, F Class Insulation, Reversible - USA Tool & Supply

US Motors - 15 hp, TEFC Enclosure, No Thermal Protection, 3,545 RPM, 200 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 254 Frame, Rigid Mount, 1 Speed, Ball Bearings, 41 Full Load Amps, F Class Insulation, Reversible


Item #: 86340841
Brand: US Motors
Model #: H15E1H
Exact Tooling IR#: 04

Product Specifications
Motor Type Three Phase Energy Efficient
Type of Enclosure TEFC
Horsepower 15
Thermal Protection Rating None
Name Plate RPMs 3545
Voltage 200
Frequency Hz 60
Frame Size 254
Mount Type Rigid
Number of Speeds 1
Bearing Type Ball
Applications General Purpose
Full Load Amperage 41
Insulation Class F
Frame Material Cast Iron
Overall Length (Decimal Inch) 23.7500
Full Load Efficiency Rating 90.2
Service Factor Rating 1.15
Motor Rotation Reversible
PSC Code 6105
$2,684.75
