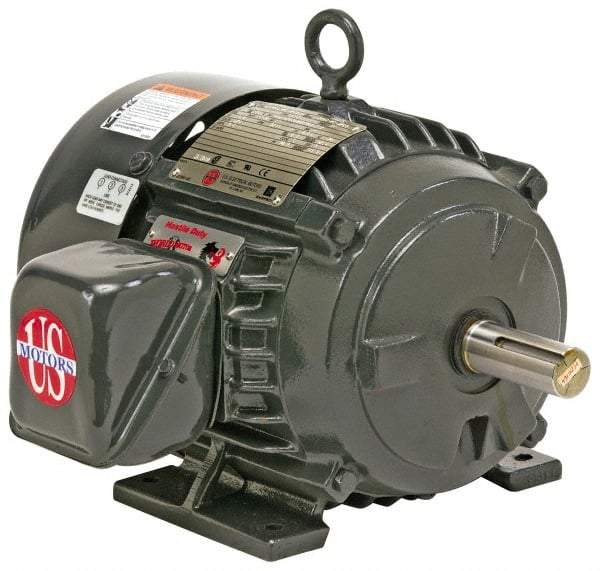

US Motors - 5 hp, TEFC Enclosure, No Thermal Protection, 1,755 RPM, 230/460 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 184 Frame, Rigid Mount, 1 Speed, Ball Bearings, 12.5/6.3 Full Load Amps, F Class Insulation, Reversible - USA Tool & Supply

US Motors - 5 hp, TEFC Enclosure, No Thermal Protection, 1,755 RPM, 230/460 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 184 Frame, Rigid Mount, 1 Speed, Ball Bearings, 12.5/6.3 Full Load Amps, F Class Insulation, Reversible


Item #: 86338837
Brand: US Motors
Model #: H3T2BC
Exact Tooling IR#: 04

Product Specifications
Motor Type Three Phase Premium Efficient
Type of Enclosure TEFC
Horsepower 5
Thermal Protection Rating None
Name Plate RPMs 1755
Voltage 230/460
Frequency Hz 60
Frame Size 184
Mount Type Rigid
Number of Speeds 1
Bearing Type Ball
Applications Definite Purpose
Full Load Amperage 12.5/6.3
Insulation Class F
Frame Material Cast Iron
Overall Length (Decimal Inch) 15.5600
Full Load Efficiency Rating 89.5
Service Factor Rating 1.15
Motor Rotation Reversible
PSC Code 6105
$1,310.23
