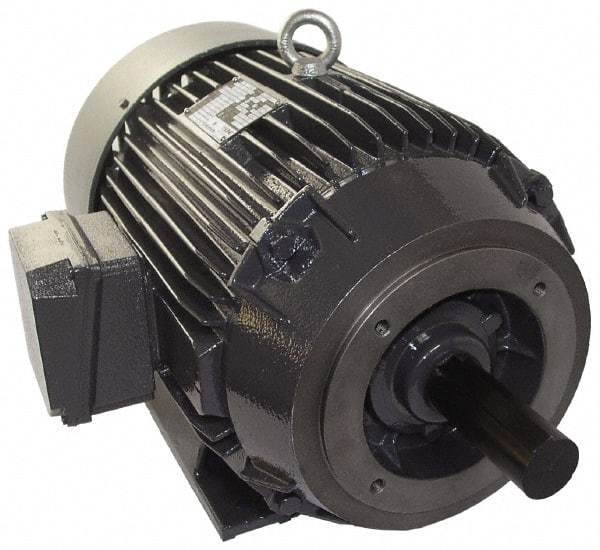

US Motors - 30 hp, TEFC Enclosure, No Thermal Protection, 1,755 RPM, 208-230/460 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 286 Frame, Rigid Mount, 1 Speed, Ball Bearings, 75.2-66.4/33.2 Full Load Amps, F Class Insulation, CCW Lead End
Item #: 86338050
Brand: US Motors
Model #: ELT30E2DC
Exact Tooling IR#: 04
Product Specifications | |
---|---|
Motor Type | Three Phase Energy Efficient |
Type of Enclosure | TEFC |
Horsepower | 30 |
Thermal Protection Rating | None |
Name Plate RPMs | 1755 |
Voltage | 208-230/460 |
Frequency Hz | 60 |
Frame Size | 286 |
Mount Type | Rigid |
Number of Speeds | 1 |
Bearing Type | Ball |
Applications | General Purpose |
Full Load Amperage | 75.2-66.4/33.2 |
Insulation Class | F |
Frame Material | Cast Iron |
Overall Length (Decimal Inch) | 28.6000 |
Full Load Efficiency Rating | 91.4 |
Service Factor Rating | 1.15 |
Motor Rotation | CCW Lead End |
PSC Code | 6105 |
