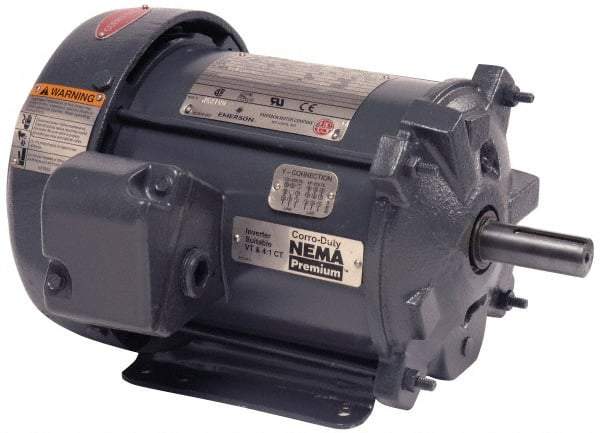

US Motors - 200 hp, TEFC Enclosure, No Thermal Protection, 1,785 RPM, 460 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 447 Frame, Rigid Mount, Ball Bearings, 225.0 Full Load Amps, F Class Insulation, CCW Lead End - USA Tool & Supply

US Motors - 200 hp, TEFC Enclosure, No Thermal Protection, 1,785 RPM, 460 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 447 Frame, Rigid Mount, Ball Bearings, 225.0 Full Load Amps, F Class Insulation, CCW Lead End


Item #: 86337342
Brand: US Motors
Model #: C200P2CB
Exact Tooling IR#: 04

Product Specifications
Motor Type Three Phase Premium Efficient
Type of Enclosure TEFC
Horsepower 200
Thermal Protection Rating None
Name Plate RPMs 1785
Voltage 460
Frequency Hz 60
Frame Size 447
Mount Type Rigid
Bearing Type Ball
Applications General Purpose
Full Load Amperage 225.0
Insulation Class F
Frame Material Cast Iron
Overall Length (Decimal Inch) 49.3800
Service Factor Rating 1.15
Motor Rotation CCW Lead End
PSC Code 6105
$27,725.32
