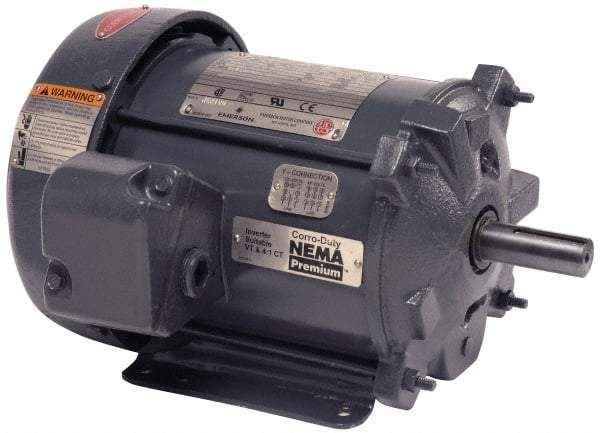

US Motors - 2 hp, TEFC Enclosure, No Thermal Protection, 1,175 RPM, 575 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 184 Frame, Rigid Mount, 1 Speed, Ball Bearings, 2.5 Full Load Amps, F Class Insulation, Reversible - USA Tool & Supply

US Motors - 2 hp, TEFC Enclosure, No Thermal Protection, 1,175 RPM, 575 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 184 Frame, Rigid Mount, 1 Speed, Ball Bearings, 2.5 Full Load Amps, F Class Insulation, Reversible


Item #: 86337250
Brand: US Motors
Model #: C2P3G*
Exact Tooling IR#: 04

Product Specifications
Motor Type Three Phase Premium Efficient
Type of Enclosure TEFC
Horsepower 2
Thermal Protection Rating None
Name Plate RPMs 1175
Voltage 575
Frequency Hz 60
Frame Size 184
Mount Type Rigid
Number of Speeds 1
Bearing Type Ball
Applications General Purpose
Full Load Amperage 2.5
Insulation Class F
Frame Material Cast Iron
Overall Length (Decimal Inch) 16.1900
Full Load Efficiency Rating 88.5
Service Factor Rating 1.15
Motor Rotation Reversible
PSC Code 6105
$1,794.27

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
