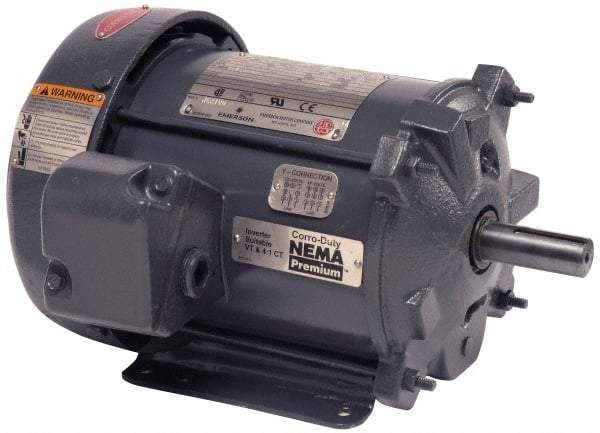

US Motors - 125 hp, TEFC Enclosure, No Thermal Protection, 1,785 RPM, 460 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 444 Frame, Rigid Mount, 1 Speed, Ball Bearings, 147 Full Load Amps, F Class Insulation, Reversible - USA Tool & Supply

US Motors - 125 hp, TEFC Enclosure, No Thermal Protection, 1,785 RPM, 460 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 444 Frame, Rigid Mount, 1 Speed, Ball Bearings, 147 Full Load Amps, F Class Insulation, Reversible


Item #: 86337037
Brand: US Motors
Model #: C125P2C
Exact Tooling IR#: 04

Product Specifications
Motor Type Three Phase Premium Efficient
Type of Enclosure TEFC
Horsepower 125
Thermal Protection Rating None
Name Plate RPMs 1785
Voltage 460
Frequency Hz 60
Frame Size 444
Mount Type Rigid
Number of Speeds 1
Bearing Type Ball
Applications General Purpose
Full Load Amperage 147
Insulation Class F
Frame Material Cast Iron
Overall Length (Decimal Inch) 43.8800
Full Load Efficiency Rating 95.4
Service Factor Rating 1.15
Motor Rotation Reversible
PSC Code 6105
$21,450.43
