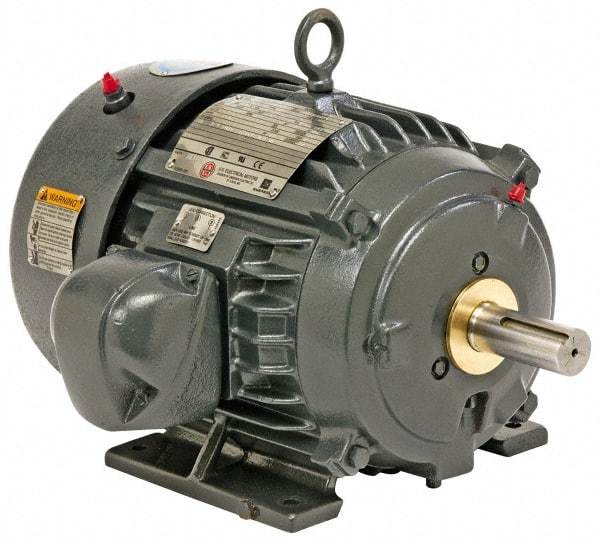

US Motors - 5 hp, TEFC Enclosure, No Thermal Protection, 1,170 RPM, 575 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 215 Frame, Rigid Mount, 1 Speed, Ball Bearings, 5.6 Full Load Amps, F Class Insulation, Reversible - USA Tool & Supply

US Motors - 5 hp, TEFC Enclosure, No Thermal Protection, 1,170 RPM, 575 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 215 Frame, Rigid Mount, 1 Speed, Ball Bearings, 5.6 Full Load Amps, F Class Insulation, Reversible


Item #: 86336393
Brand: US Motors
Model #: 8P5P3G
Exact Tooling IR#: 04

Product Specifications
Motor Type Three Phase Premium Efficient
Type of Enclosure TEFC
Horsepower 5
Thermal Protection Rating None
Name Plate RPMs 1170
Voltage 575
Frequency Hz 60
Frame Size 215
Mount Type Rigid
Number of Speeds 1
Bearing Type Ball
Applications General Purpose
Full Load Amperage 5.6
Insulation Class F
Frame Material Cast Iron
Overall Length (Decimal Inch) 19.5600
Full Load Efficiency Rating 90.2
Service Factor Rating 1.15
Motor Rotation Reversible
PSC Code 6105
$2,913.90
