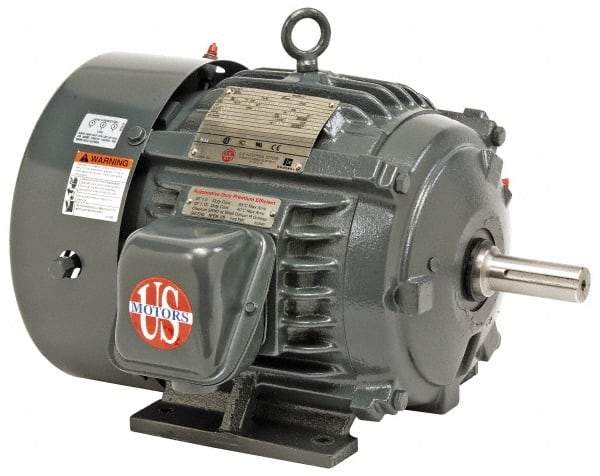

US Motors - 25 hp, TEFC Enclosure, No Thermal Protection, 1,780 RPM, 460 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 324 Frame, Rigid Mount, 1 Speed, Ball Bearings, 28.4 Full Load Amps, F Class Insulation, Reversible
Item #: 86336096
Brand: US Motors
Model #: A25P2C
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 25 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1780 |
| Voltage | 460 |
| Frequency Hz | 60 |
| Frame Size | 324 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | Definite Purpose |
| Full Load Amperage | 28.4 |
| Insulation Class | F |
| Frame Material | Cast Iron |
| Overall Length (Decimal Inch) | 30.9400 |
| Full Load Efficiency Rating | 93.6 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
