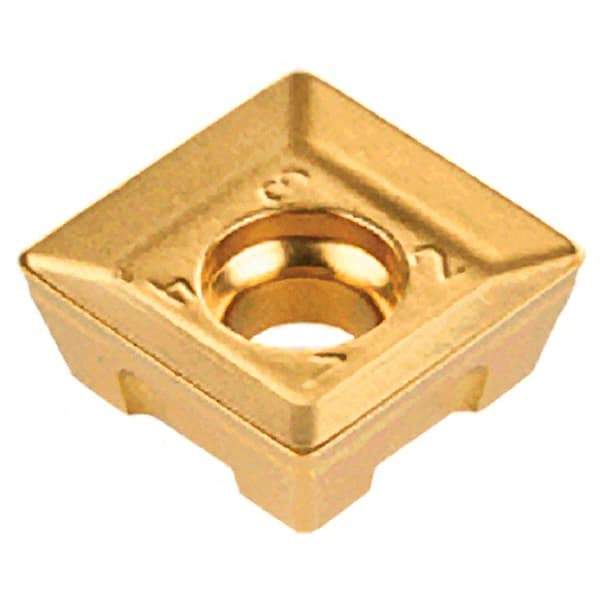

Iscar - QPMT100408 M Grade IC910 Carbide Milling Insert - AlTiN Finish, 0.1622" Thick, 0.4075" Inscribed Circle, 0.7mm Corner Radius
Item #: 86332772
Brand: Iscar
Model #: 5603730
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QPMT |
| Insert Size | 100408 |
| Material | Carbide |
| Manufacturer's Grade | IC910 |
| Coating | AlTiN |
| Inscribed Circle (Decimal Inch) | 0.4075 |
| Thickness (Decimal Inch) | 0.1622 |
| Corner Radius (Decimal Inch) | 0.0276 |
| Corner Radius (mm) | 0.70 |
| Relief Angle | 11.000 |
| Rake Angle | 15 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Square |
| Chipbreaker | M |
| ISO Number | QPMT 100408PDTN-M |
