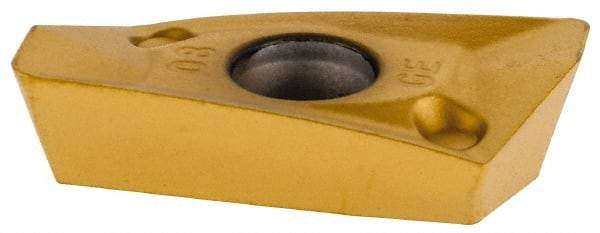

Kennametal - EP1408 Grade KC725M Carbide Milling Insert - TiN/TiCN/TiN Finish, 0.1752" Thick, 0.8mm Corner Radius
Item #: 86239449
Brand: Kennametal
Model #: 3855237
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EP |
| Insert Size | 1408 |
| Material | Carbide |
| Material Grade | C5/C6/C7 |
| Manufacturer's Grade | KC725M |
| Coating | TiN/TiCN/TiN |
| Width (Decimal Inch) | 0.3220 |
| Length (Decimal Inch) | 0.6866 |
| Thickness (Decimal Inch) | 0.1752 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 15.000 |
| Rake Angle | 20 |
| Coating Process | PVD |
| Included Angle | 75 |
| Shape | Parallelogram |
| ISO Number | EDPT140408PDSRGE |
