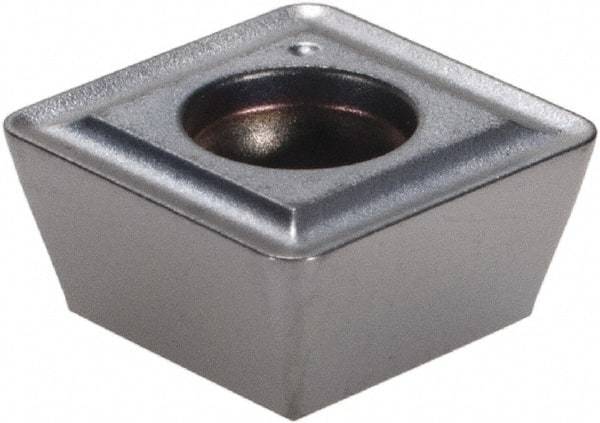

Ingersoll Cutting Tools - SPLT07T308 PH Grade IN1030 Carbide Indexable Drill Insert - TiCN Finish, Square, 5/16" Inscribed Circle
Item #: 86117983
Brand: Ingersoll Cutting Tools
Model #: 5151056
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steel, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Insert Style | SPLT |
| Insert Size | 07T308 |
| Material | Carbide |
| Material Grade | C1/C2/C6 |
| Manufacturer's Grade | IN1030 |
| Inscribed Circle (Decimal Inch) | 0.3130 |
| Thickness (Decimal Inch) | 0.1600 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Shape | Square |
| Included Angle | 90 |
| Coating | TiCN |
| Coating Process | PVD |
| Chipbreaker | PH |
