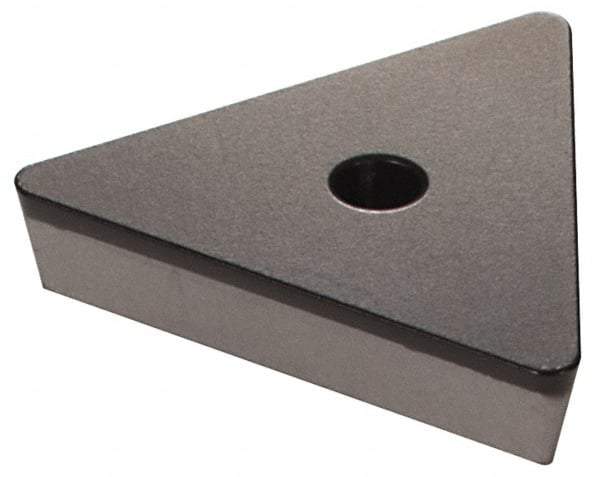

Iscar - TPU322 Grade IC5005 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 1/8" Thick, 0.3748" Inscribed Circle, 0.8mm Corner Radius
Item #: 86072337
Brand: Iscar
Model #: 5550492
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPU |
| Insert Size | 322 |
| Material | Carbide |
| Manufacturer's Grade | IC5005 |
| Coating | TiCN/Al2O3/TiN |
| Length (Decimal Inch) | 0.6300 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 11.000 |
| Rake | Positive |
| Coating Process | CVD |
| Included Angle | 60 |
| Shape | Triangle |
| ISO Number | TPUN 160308 |
