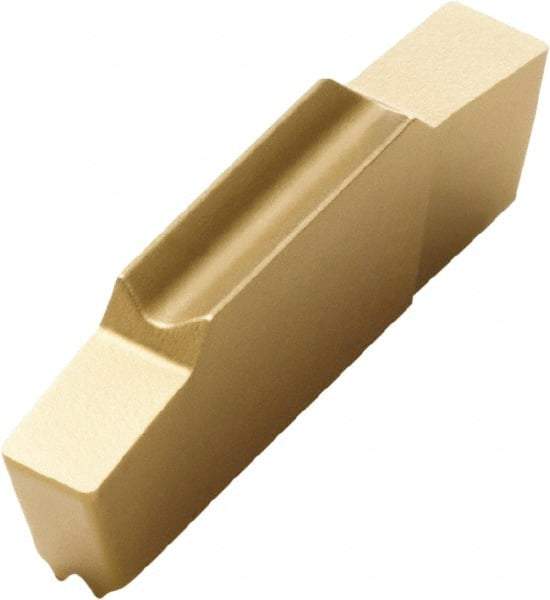

Seco - LCGN, 0.236" Cutting Width, FG, CP500 Grade, Single End Multi-Directional Turning Insert - TiAlN, TiN Coated
Item #: 85991644
Brand: Seco
Model #: 71682
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | LCGN |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP500 |
| Cutting Width (Decimal Inch) | 0.2360 |
| Cutting Height (Decimal Inch) | 0.1770 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Single or Double End | Single |
| Chipbreaker | FG |
| Full Radius | No |
| Insert Length (Decimal Inch) | 0.6930 |
| Series | MDT |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
