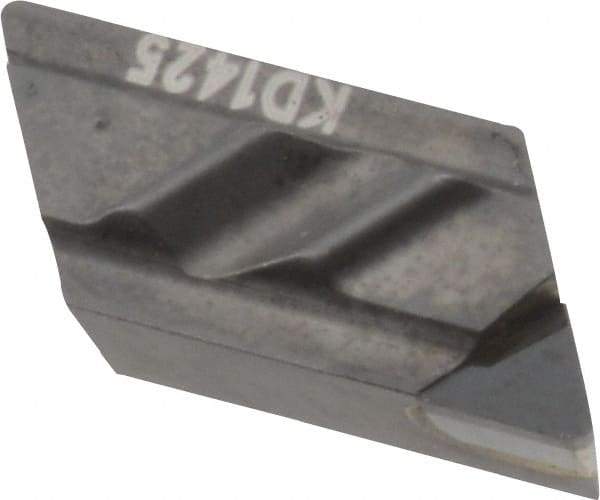

Kennametal - NPL51, KD1425 Grade Diamond Tipped Profiling Insert - Uncoated, 55° Incl Angle, Parallelogram, 0.4566" Side Length, 1/8" Thick, 1/64" Corner Radius
Item #: 85879724
Brand: Kennametal
Model #: 3643853
Exact Tooling IR#: 04
Features and Benefits
Diamond tips are one of the hardest cutting materials. It is brazed onto a carbide insert. Commonly used at high cutting speeds on non-ferrous metals.
| Product Specifications | |
|---|---|
| Material | Diamond Tipped |
| Insert Style | NPL |
| Insert Size | 51 |
| Manufacturer's Grade | KD1425 |
| Width (mm) | 6.35 |
| Width (Decimal Inch) | 0.2500 |
| Thickness (mm) | 3.18 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (Inch) | 1/8 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Relief Angle | 8 |
| Coating | Uncoated |
| Insert Length (mm) | 9.53 |
| Insert Length (Decimal Inch) | 0.3750 |
| Insert Length (Inch) | 3/8 |
| Side Length (Decimal Inch) | 0.4566 |
| Side Length (mm) | 11.60 |
| Chipbreaker | 15 |
| Included Angle | 55 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | Top Notch |
| Insert Holding Method | Clamp |
| Shape | Parallelogram |
