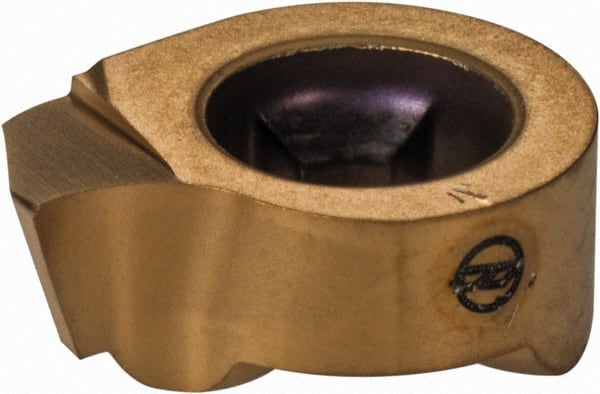

Iscar - GIQR 11-A18-0.15 IC528 Carbide Grooving Insert
Item #: 85749620
Brand: Iscar
Model #: 6402680
Product Specifications
| Insert Style | GIQR |
| Insert Size | 11A18015 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 2.49 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC528 |
| Coating | TiCN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Relief Angle | 18 |
| Multi-Use Application | Boring; Profiling |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 0.15 |
| Corner Radius (Decimal Inch) | 0.0060 |
| Coating Process | PVD |
| Overall Length (mm) | 10.69 |
| Overall Length (Decimal Inch) | 0.4210 |
| Series | ChamGroove |
| ISO Number | GIQR 11-A18-0.15 |
| Manufacturers Catalog Number | GIQR 11-A18-0.15 |
