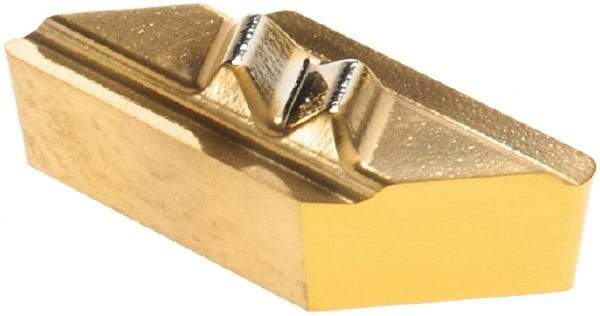

Tool-Flo - FLPR52, GP3 Grade Carbide Profiling Insert - TiN Finish, 55° Incl Angle, Parallelogram, 1/8" Thick, 1/32" Corner Radius
Item #: 85655165
Brand: Tool-Flo
Model #: 64252J5R
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | FLPR |
| Insert Size | 52 |
| Material Grade | Micrograin |
| Manufacturer's Grade | GP3 |
| Width (Decimal Inch) | 0.2500 |
| Width (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (Inch) | 1/8 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Relief Angle | 8 |
| Coating | TiN |
| Insert Length (Decimal Inch) | 0.3750 |
| Insert Length (Inch) | 3/8 |
| Coating Process | PVD |
| Chipbreaker | C |
| Included Angle | 55 |
| Insert Hand | Right Hand |
| Shape | Parallelogram |
