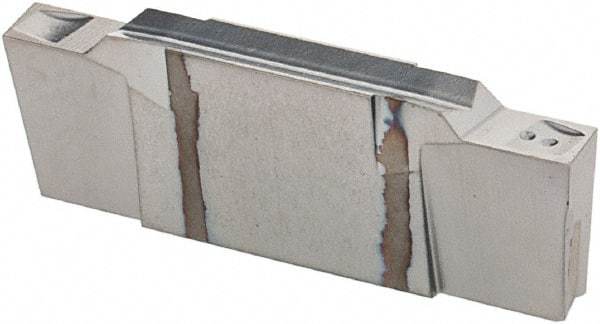

Iscar - DGR WP IC328 Grade, 0.0941" Cutting Width, Carbide Cutoff Insert - 12° Right Hand Lead Angle, 0.002" Cnr Rad, TiCN Coated, Double End
Item #: 85561967
Brand: Iscar
Model #: 6002933
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DGR |
| Lead Angle Direction | Right Hand |
| Lead Angle | 12 |
| Cutting Width (mm) | 2.39 |
| Cutting Width (Decimal Inch) | 0.0941 |
| Material Grade | C2/C3/C5/C6 |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Series | Do-Grip |
| Chipbreaker | WP |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Coating Process | PVD |
| Overall Length (mm) | 20.40 |
| Overall Length (Decimal Inch) | 0.8031 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Corner Radius (mm) | 0.05 |
| Insert Holding Method | Clamp |
| Manufacturers Catalog Number | DGR 2400WP-12D |
