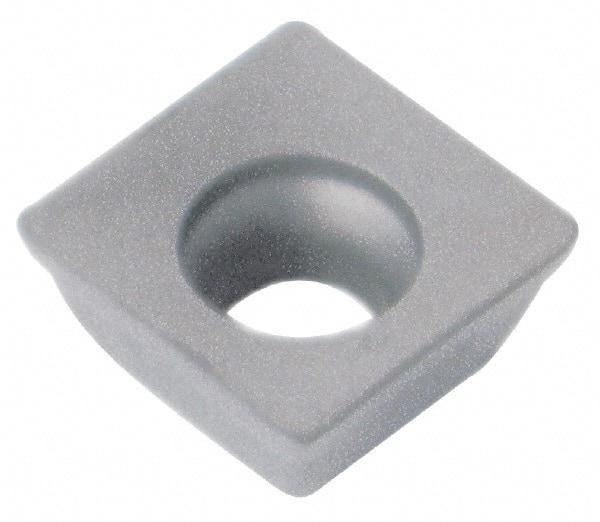

Ingersoll Cutting Tools - SDMT080305 Grade IN1030 Carbide Milling Insert - TiCN Finish, 0.138" Thick, 0.315" Inscribed Circle, 0.02" Corner Radius
Item #: 85533552
Brand: Ingersoll Cutting Tools
Model #: 5811351
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SDMT |
| Insert Size | 080305 |
| Material | Carbide |
| Material Grade | C1/C2 |
| Manufacturer's Grade | IN1030 |
| Coating | TiCN |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Thickness (Decimal Inch) | 0.1380 |
| Corner Radius (Decimal Inch) | 0.0200 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| ISO Number | SDMW080305TN IN1030 |
