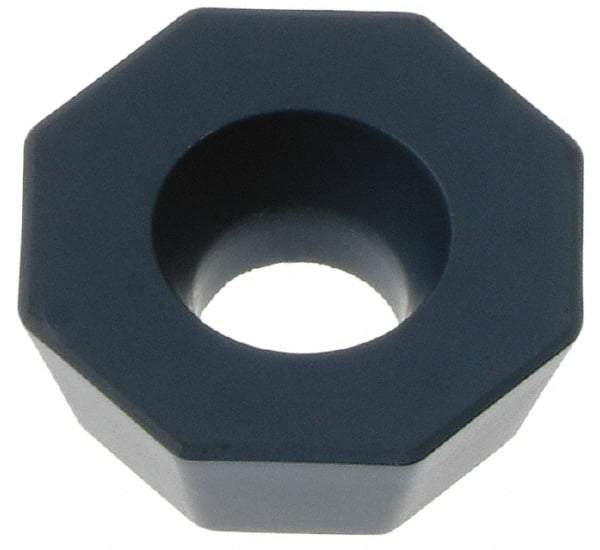

Kennametal - ODMT0605 41 Grade X500 Carbide Milling Insert - TiN/TiC/TiN Finish, 0.219" Thick, 0.63" Inscribed Circle
Item #: 85526937
Brand: Kennametal
Model #: 5657542
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ODMT |
| Insert Size | 0605 |
| Material | Carbide |
| Material Grade | C1/C2/C3/C6/C7 |
| Manufacturer's Grade | X500 |
| Coating | TiN/TiC/TiN |
| Length (Decimal Inch) | 0.2360 |
| Inscribed Circle (Decimal Inch) | 0.6300 |
| Thickness (Decimal Inch) | 0.2190 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Included Angle | 135 |
| Shape | Octagon |
| Insert Hand | Neutral |
| Chipbreaker | 41 |
