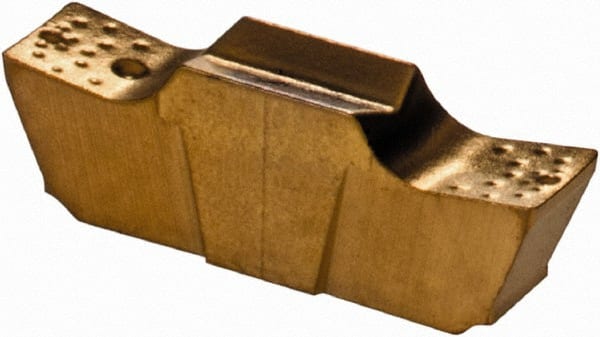

Grooving Insert: GEPI239015 IC528, Solid Carbide TiCN & TiN Finish, Neutral, 2.39 mm Cutting Width, 8.99 mm Max Depth, Series Cut-Grip
Item #: 85136638
Brand: Iscar
Model #: 6403198
Product Specifications
| Insert Style | GEPI |
| Insert Size Code | 239015 |
| Insert Size | 239015 |
| Insert Material | Solid Carbide |
| Material Grade | Submicron |
| Manufacturer Grade | IC528 |
| Cutting Width (Decimal Inch) | 0.0940 |
| Cutting Width (mm) | 2.39 |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Maximum Depth of Cut (mm) | 8.99 |
| Insert Holding Method | Self Grip |
| Cutting Height (mm) | 2.90 |
| Insert Hand | Neutral |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.3000 to 1.0000 |
| Cutting Height (Decimal Inch) | 0.1140 |
| Corner Radius (mm) | 0.15 |
| Corner Radius (Decimal Inch) | 0.0060 |
| Maximum Depth Of Cut Range (mm) | 5.00 to 10.00 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning; Parting |
| Series | Cut Grip |
| Coating Process | PVD |
| Rake Angle | 8.00 |
| Overall Length (Decimal Inch) | 0.3940 |
| Overall Length (mm) | 10.01 |
| Primary Workpiece Material | Superalloy; Titanium |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | GEPI 2.39-0.15 |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | GEPI 2.39-0.15 |
| Full Radius | No |
| Coating/Finish | TiCN; TiN |
| Single Or Double End | Double |
 | |
| MSC Part # | 85136638 |
| Mfr Part # | 6403198 |
