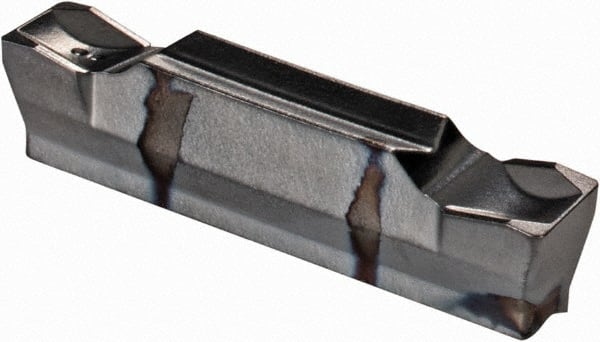

Grooving Insert: HGR3003 IC328, Solid Carbide TiCN Finish, Right Hand, 0.1181″ Cutting Width, Series Do-Grip
Item #: 85108496
Brand: Iscar
Model #: 6002750
Product Specifications
| Insert Style | HGR |
| Insert Size Code | 30036D |
| Insert Size | 3003 |
| Insert Material | Solid Carbide |
| Material Grade | P45 to K40 |
| Manufacturer Grade | IC328 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Cutting Width (mm) | 3.00 |
| Insert Holding Method | Self Grip |
| Insert Hand | Right Hand |
| Corner Radius (mm) | 0.30 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning; Parting |
| Series | Do-Grip |
| Coating Process | PVD |
| Rake Angle | 6.00 |
| Overall Length (Decimal Inch) | 0.6142 |
| Overall Length (mm) | 15.60 |
| Primary Workpiece Material | Superalloy; Titanium |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | HGR 3003C-6D |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | HGR 3003C-6D |
| Full Radius | No |
| Coating/Finish | TiCN |
| Single Or Double End | Double |
