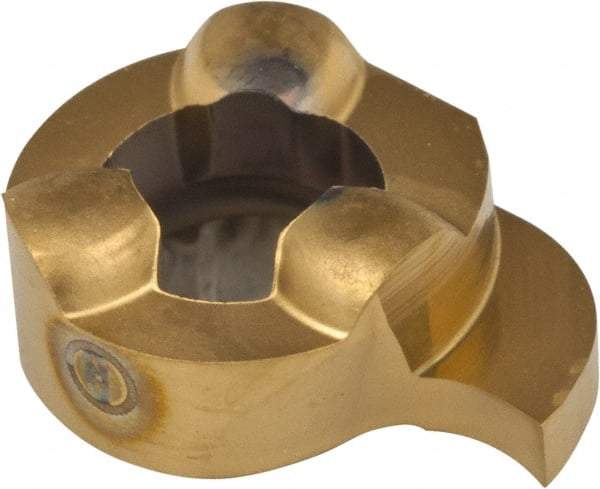

Iscar - 11-1.50-0.05GIQR Grade IC528, 1.5mm Cutting Width Carbide Internal Grooving Insert - 2.3mm Max Depth of Cut, Right Hand, 0.05mm Corner Radius, TiCN/TiN Finish
Item #: 85105708
Brand: Iscar
Model #: 6402634
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIQR |
| Insert Size | 11-1.50-0.05 |
| Material | Carbide |
| Cutting Width (mm) | 1.50 |
| Cutting Width (Decimal Inch) | 0.0591 |
| Maximum Depth of Cut (mm) | 2.30 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC528 |
| Coating | TiCN/TiN |
| Insert Hand | Right Hand |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.05 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Coating Process | PVD |
| Overall Length (mm) | 10.68 |
| Overall Length (Decimal Inch) | 0.4205 |
| Manufacturers Catalog Number | GIQR 11-1.50-0.05 |
