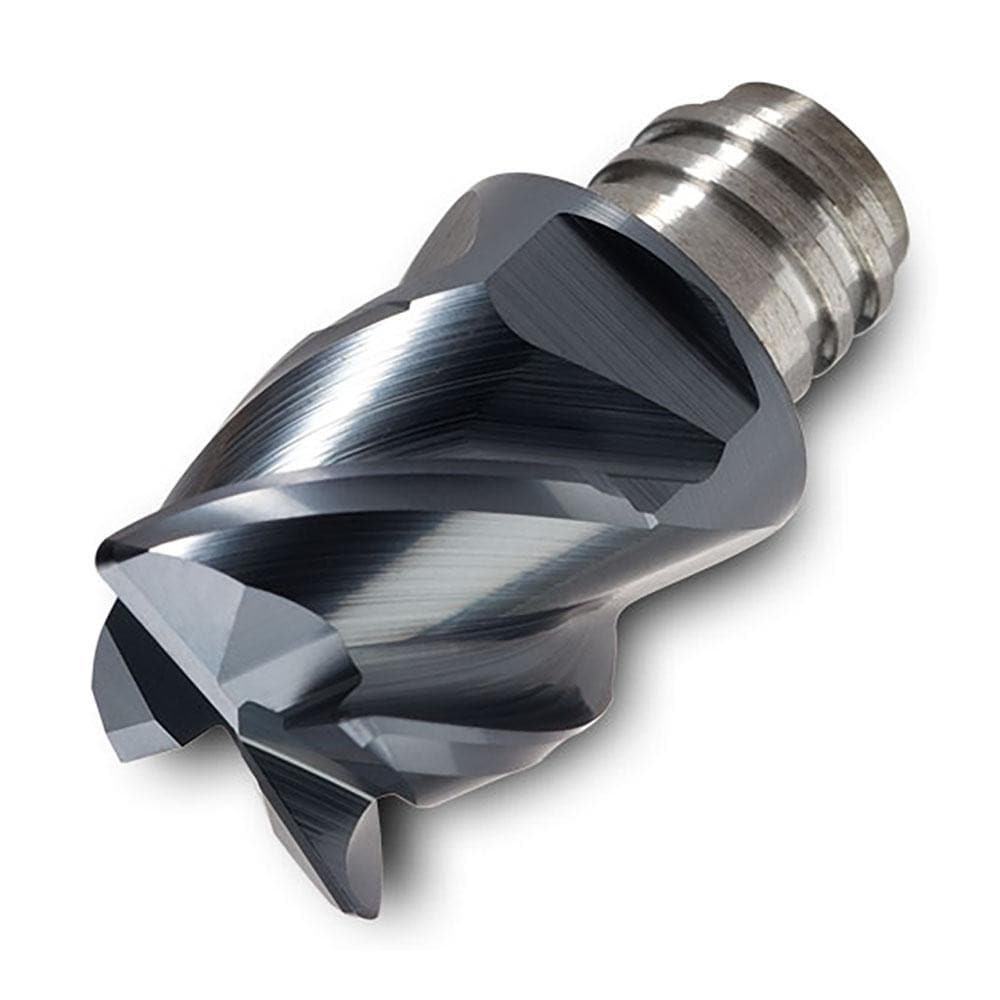

End Milling Tip Insert: Square End Mill IN2005, Carbide
Item #: 07275829
Brand: Ingersoll Cutting Tools
Model #: 5809781
Product Specifications
| Milling Tip Type | End |
| Milling Tip Style | 47J |
| Maximum Depth of Cut (Decimal Inch) | 0.27 |
| Cutting Diameter (Decimal Inch) | 0.3750 |
| Tool Material | Carbide |
| Manufacturer Grade | IN2005 |
| Series | Chip Surfer |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0000 |
| Functional Length (Decimal Inch) | 0.5100 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Milling Tip Full Description | Square End Mill |
| Thread Size | T06 |
| Manufacturers Catalog Number | 47J-3727T6RD05 IN2005 |
| Overall Length (Decimal Inch) | 0.5100 |
| Helix Angle | 45 |
| Coolant Through | No |
| Material Grade | C2 |
| Included Angle Degree | 90 |
| Coating/Finish | TiAlN |
| UNSPSC Code | 23291601 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2700 |
| Number Of Flutes | 4 |
| Extension From Holder (Inch) | 0.5100 |
