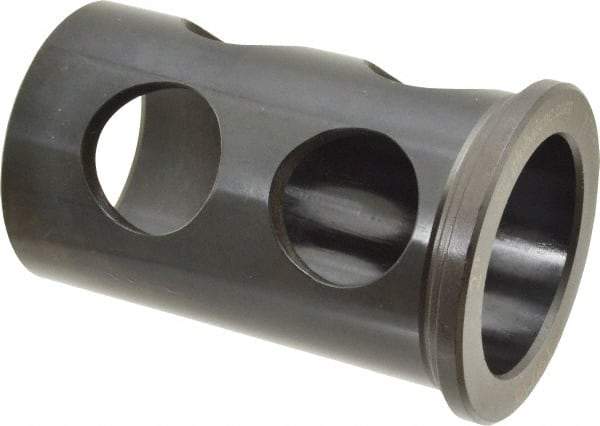

Global CNC Industries - 2" ID, 2-1/2" OD, 4" Length Under Head, Type J Lathe Tool Holder Bushing - 1-1/4" Hole Diam
Item #: 84949502
Brand: Global CNC Industries
Model #: 8606J 2.000
Exact Tooling IR#: 04
Features and Benefits
J toolholder bushings are designed with a long solid body and two cearance holes for set screw clamping directly onto the tool.
| Product Specifications | |
|---|---|
| Type | J |
| Outside Diameter (Decimal Inch) | 2.5000 |
| Outside Diameter (Inch) | 2-1/2 |
| Inside Diameter (Inch) | 2 |
| Inside Diameter (Decimal Inch) | 2.0000 |
| Head Thickness (Decimal Inch) | 0.3330 |
| Length Under Head (Inch) | 4 |
| Length Under Head (Decimal Inch) | 4.0000 |
| Distance Between Hole Centers (Inch) | 1-3/4 |
| Hole Diameter (Inch) | 1-1/4 |
