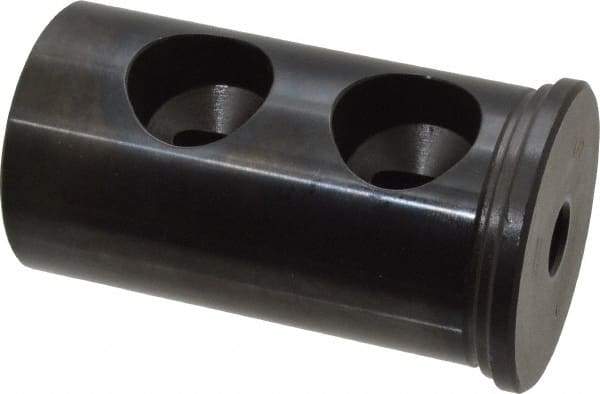

Global CNC Industries - 1/2" ID, 2" OD, 3-1/2" Length Under Head, Type J Lathe Tool Holder Bushing - 1" Hole Diam
Item #: 84949346
Brand: Global CNC Industries
Model #: 8605J .500
Exact Tooling IR#: 04
Features and Benefits
J toolholder bushings are designed with a long solid body and two cearance holes for set screw clamping directly onto the tool.
| Product Specifications | |
|---|---|
| Type | J |
| Outside Diameter (Decimal Inch) | 2.0000 |
| Outside Diameter (Inch) | 2 |
| Inside Diameter (Inch) | 1/2 |
| Inside Diameter (Decimal Inch) | 0.5000 |
| Head Thickness (Decimal Inch) | 0.2950 |
| Length Under Head (Inch) | 3-1/2 |
| Length Under Head (Decimal Inch) | 3.5000 |
| Distance Between Hole Centers (Inch) | 1-1/2 |
| Hole Diameter (Inch) | 1 |
