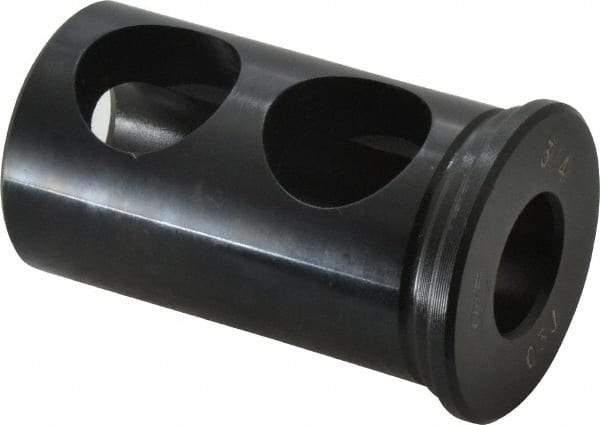

Global CNC Industries - 3/4" ID, 1-1/2" OD, 2-1/2" Length Under Head, Type J Lathe Tool Holder Bushing - 7/8" Hole Diam
Item #: 84949239
Brand: Global CNC Industries
Model #: 8603J .750
Exact Tooling IR#: 04
Features and Benefits
J toolholder bushings are designed with a long solid body and two cearance holes for set screw clamping directly onto the tool.
| Product Specifications | |
|---|---|
| Type | J |
| Outside Diameter (Decimal Inch) | 1.5000 |
| Outside Diameter (Inch) | 1-1/2 |
| Inside Diameter (Inch) | 3/4 |
| Inside Diameter (Decimal Inch) | 0.7500 |
| Head Thickness (Decimal Inch) | 0.2650 |
| Length Under Head (Inch) | 2-1/2 |
| Length Under Head (Decimal Inch) | 2.5000 |
| Distance Between Hole Centers (Inch) | 1-1/8 |
| Hole Diameter (Inch) | 7/8 |
