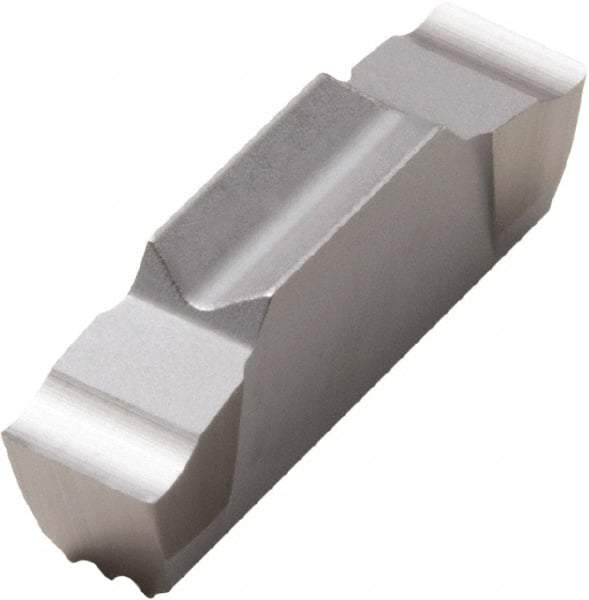

Seco - LCGF, 0.1181" Cutting Width, GS, 883 Grade, Double End Multi-Directional Turning Insert - Uncoated, 0.2mm Cnr Rad
Item #: 84866243
Brand: Seco
Model #: 52706
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | LCGF |
| Material Grade | Micrograin |
| Manufacturer's Grade | 883 |
| Thickness (Decimal Inch) | 0.1575 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Cutting Width (mm) | 3.00 |
| Cutting Height (Decimal Inch) | 0.1540 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Single or Double End | Double |
| Chipbreaker | GS |
| Insert Seat Size | 13 |
| Full Radius | No |
| Insert Length (Decimal Inch) | 0.4862 |
| Coating | Uncoated |
| Insert Holding Method | Clamp |
