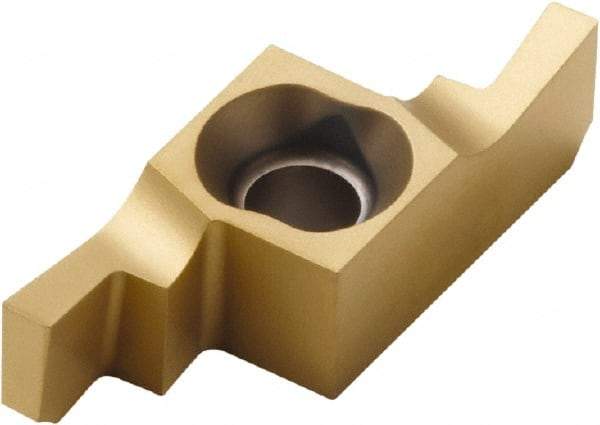

Seco - 1214712NR FD Grade CP500, 1.47mm Cutting Width Carbide Grooving Insert - 2.94mm Max Depth of Cut, Right Hand, 0.1mm Corner Radius, TiAlN/TiN Finish
Item #: 84855659
Brand: Seco
Model #: 00395
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 12NR |
| Insert Size | 12147 |
| Material | Carbide |
| Cutting Width (mm) | 1.47 |
| Cutting Width (Decimal Inch) | 0.0579 |
| Maximum Depth of Cut (mm) | 2.94 |
| Maximum Depth of Cut (Decimal Inch) | 0.1157 |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP500 |
| Coating | TiAlN/TiN |
| Insert Hand | Right Hand |
| Insert Seat Size | 12 |
| Chipbreaker | FD |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Coating Process | PVD |
| Overall Length (mm) | 12.00 |
| Overall Length (Decimal Inch) | 0.4724 |
| Series | Snap Tap |
| Overall Width (mm) | 6.35 |
| Overall Width (Decimal Inch) | 0.2500 |
