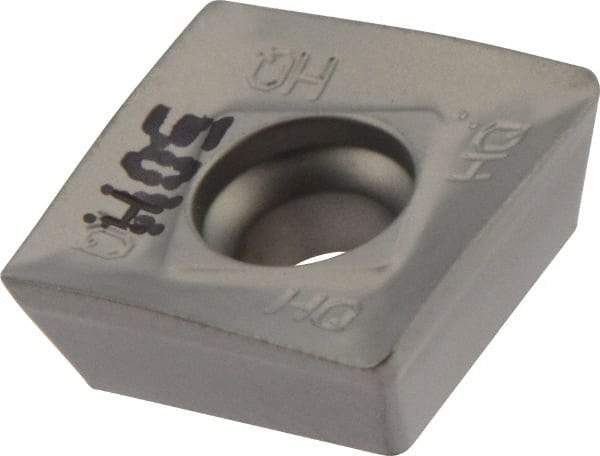

Iscar - SDMT1205 M Grade IC50M Carbide Milling Insert - Uncoated, 0.1969" Thick, 1/2" Inscribed Circle, 0.8mm Corner Radius
Item #: 84642156
Brand: Iscar
Model #: 5693883
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SDMT |
| Insert Size | 1205 |
| Material | Carbide |
| Manufacturer's Grade | IC50M |
| Coating | Uncoated |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1969 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 15.000 |
| Included Angle | 90 |
| Shape | Square |
| Chipbreaker | M |
| ISO Number | SDMT 1205PDR-HQ-M |
