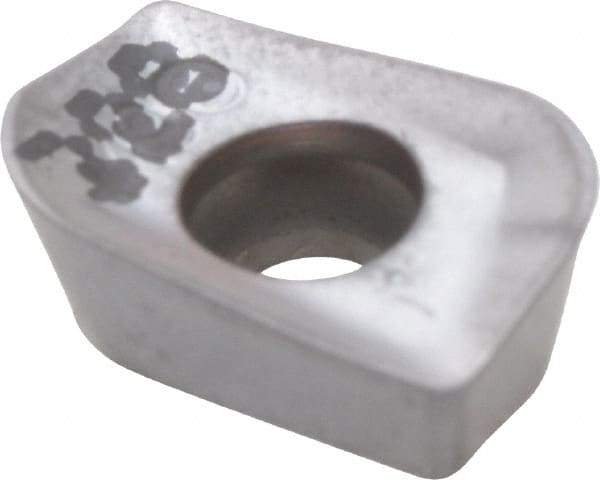

Iscar - HM90 APKT100330 Grade IC328 Carbide Milling Insert - TiCN Finish, 0.139" Thick, 3mm Corner Radius
Item #: 84641059
Brand: Iscar
Model #: 5603496
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM90 APKT |
| Insert Size | 100330 |
| Material | Carbide |
| Material Grade | C2/C3/C5/C6 |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Width (Decimal Inch) | 0.2661 |
| Length (Decimal Inch) | 0.3870 |
| Thickness (Decimal Inch) | 0.1390 |
| Corner Radius (Decimal Inch) | 0.1180 |
| Corner Radius (mm) | 3.00 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| ISO Number | HM90 APKT 100330PDR |
