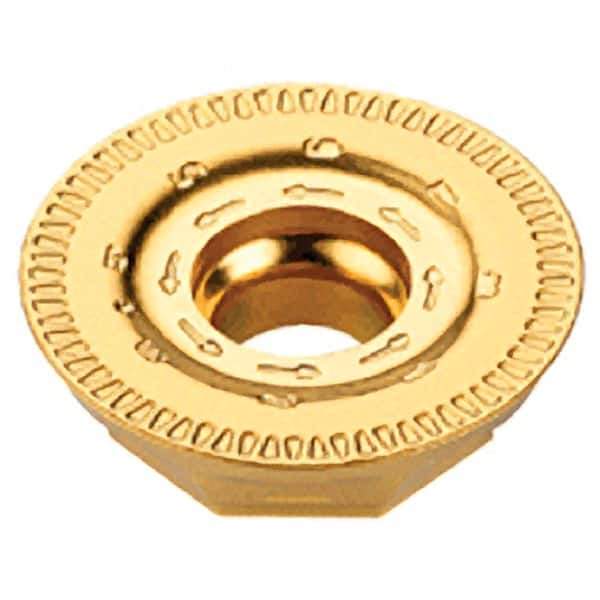

Iscar - RFMT1905 76 Grade IC4050 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 0.2157" Thick, 0.7772" Inscribed Circle
Item #: 84640853
Brand: Iscar
Model #: 5603416
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RFMT |
| Insert Size | 1905 |
| Material | Carbide |
| Manufacturer's Grade | IC4050 |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (Decimal Inch) | 0.7772 |
| Thickness (Decimal Inch) | 0.2157 |
| Relief Angle | 25.000 |
| Rake Angle | 4 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Round |
| Chipbreaker | 76 |
| ISO Number | RFMT 1905-LM-76 |
