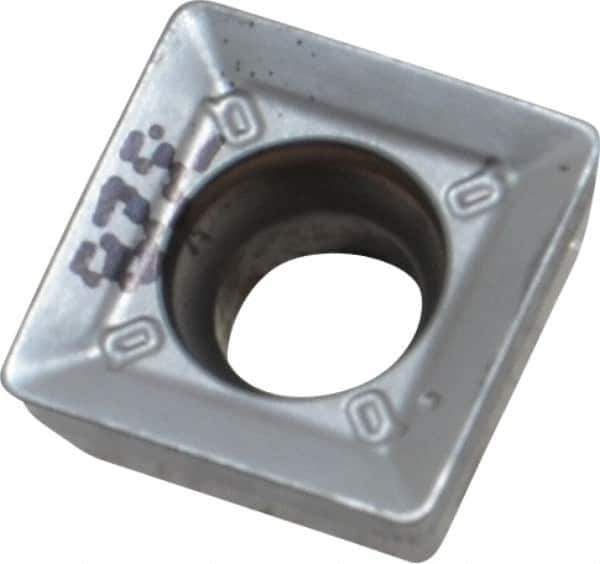

Iscar - QPMT100408 M Grade IC328 Carbide Milling Insert - TiCN Finish, 0.1622" Thick, 0.4075" Inscribed Circle, 0.7mm Corner Radius
Item #: 84415280
Brand: Iscar
Model #: 5603729
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QPMT |
| Insert Size | 100408 |
| Material | Carbide |
| Material Grade | C2/C3/C5/C6 |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Width (Decimal Inch) | 0.4075 |
| Inscribed Circle (Decimal Inch) | 0.4075 |
| Thickness (Decimal Inch) | 0.1622 |
| Corner Radius (Decimal Inch) | 0.0276 |
| Corner Radius (mm) | 0.70 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | M |
| ISO Number | QPMT 100408PDTN-M |
