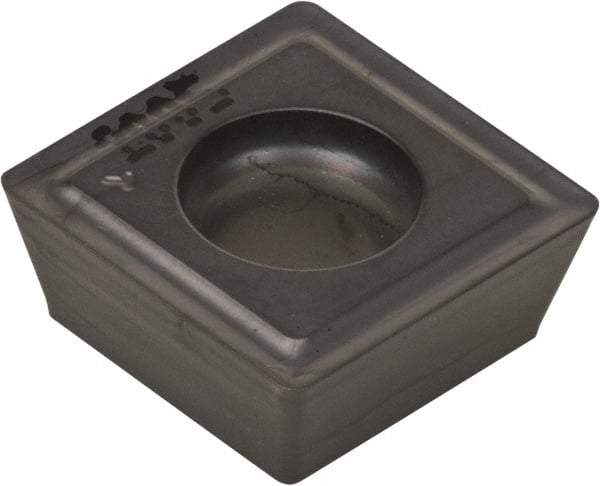

Ingersoll Cutting Tools - SHLT140508 PH Grade IN2005 Carbide Indexable Drill Insert - TiAlN Finish, Square, 0.56" Inscribed Circle
Item #: 84378850
Brand: Ingersoll Cutting Tools
Model #: 5101015
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | SHLT |
| Insert Size | 140508 |
| Material | Carbide |
| Material Grade | C2 |
| Manufacturer's Grade | IN2005 |
| Inscribed Circle (Decimal Inch) | 0.5600 |
| Thickness (Decimal Inch) | 0.2290 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Shape | Square |
| Included Angle | 90 |
| Coating | TiAlN |
| Coating Process | PVD |
| Chipbreaker | PH |
