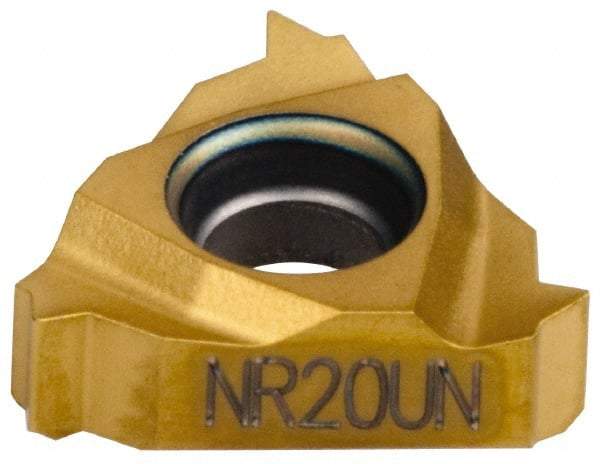

Seco - 09NR Internal Right Hand 20 UN Laydown Threading Insert - Grade CP500, TiAlN/TiN Coated Carbide
Item #: 84309871
Brand: Seco
Model #: 23503
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 09NR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | UN |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP500 |
| Threads Per Inch | 20 |
| Inscribed Circle (Inch) | 7/32 |
| Inscribed Circle (Decimal Inch) | 0.2188 |
| Thickness (Decimal Inch) | 0.0945 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0040 |
| Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.027 |
| Face of Insert to Tip Centerline (Decimal Inch) | 0.031 |
