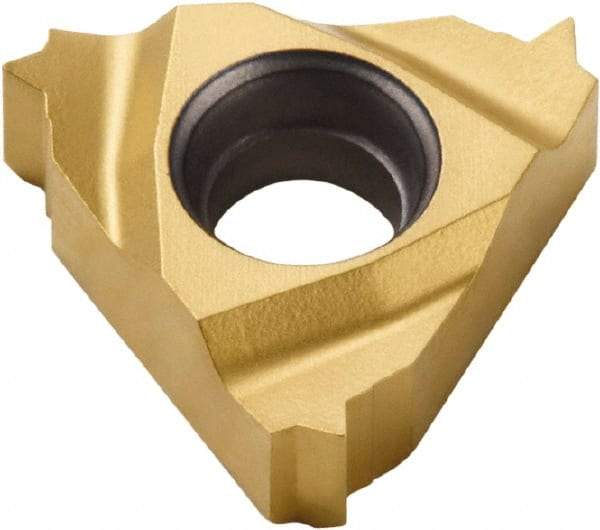

Seco - 09NR Internal Right Hand 13 UN Laydown Threading Insert - Grade CP500, TiAlN/TiN Coated Carbide, 5.56mm Inscribed Circle
Item #: 84309848
Brand: Seco
Model #: 15564
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 09NR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | UN |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP500 |
| Threads Per Inch | 13 |
| Inscribed Circle (mm) | 5.56 |
| Inscribed Circle (Decimal Inch) | 0.2189 |
| Thickness (Decimal Inch) | 0.0945 |
| Thickness (mm) | 2.40 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Corner Radius (mm) | 0.15 |
| Corner Radius (Decimal Inch) | 0.0059 |
| Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.028 |
| Face of Insert to Tip Centerline (Decimal Inch) | 0.035 |
