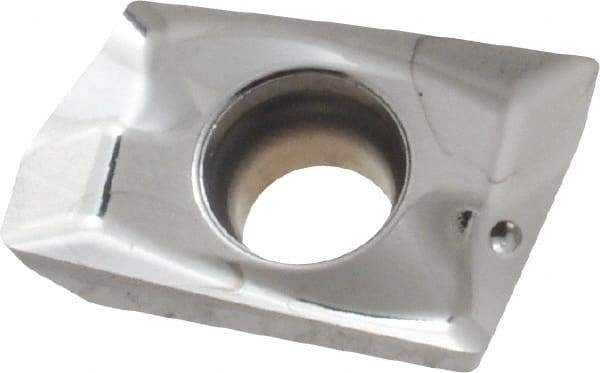

Seco - XOEX120404 E06 Grade H15 Carbide Milling Insert - Uncoated, 0.199" Thick, 0.016" Corner Radius
Item #: 83792473
Brand: Seco
Model #: 04254
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XOEX |
| Insert Size | 120404 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | H15 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.3220 |
| Length (Decimal Inch) | 0.4790 |
| Thickness (Decimal Inch) | 0.1990 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Relief Angle | 14.000 |
| Rake Angle | 27 |
| Included Angle | 80 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | E06 |
| ISO Number | XOEX120404FR-E06 |
