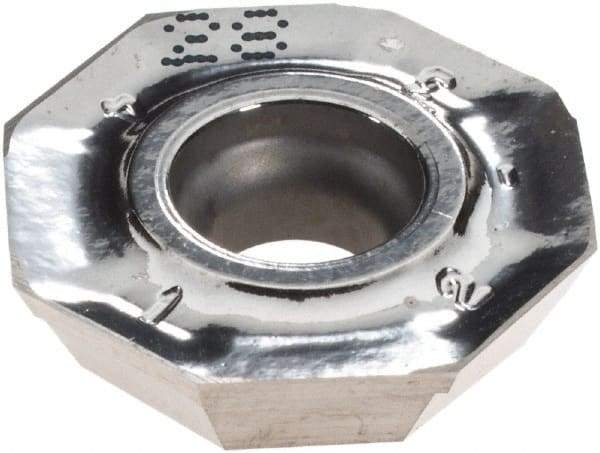

Iscar - OFCR07T3 P Grade IC28 Carbide Milling Insert - Uncoated, 0.185" Thick, 18.5mm Inscribed Circle, 0.6mm Corner Radius
Item #: 83788976
Brand: Iscar
Model #: 5603353
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | OFCR |
| Insert Size | 07T3 |
| Material | Carbide |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC28 |
| Coating | Uncoated |
| Inscribed Circle (mm) | 18.50 |
| Inscribed Circle (Decimal Inch) | 0.7283 |
| Thickness (Decimal Inch) | 0.1850 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Corner Radius (mm) | 0.60 |
| Relief Angle | 25.000 |
| Rake | Positive |
| Included Angle | 135 |
| Shape | Octagon |
| Chipbreaker | P |
| ISO Number | OFCR 07T3-RW-P |
