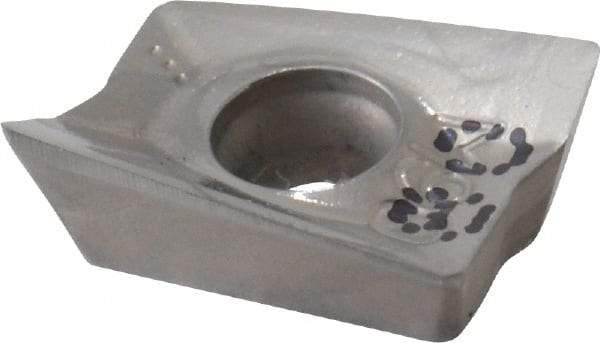

Iscar - HM90 APCR100304 P Grade IC08 Carbide Milling Insert - Uncoated, 0.1516" Thick, 0.4mm Corner Radius
Item #: 83788851
Brand: Iscar
Model #: 5602965
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM90 APCR |
| Insert Size | 100304 |
| Material | Carbide |
| Material Grade | C2 |
| Manufacturer's Grade | IC08 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.2567 |
| Length (Decimal Inch) | 0.4008 |
| Thickness (Decimal Inch) | 0.1516 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Relief Angle | 11.000 |
| Rake | Positive |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | P |
| ISO Number | HM90 APCR 100304PDFR-P |
