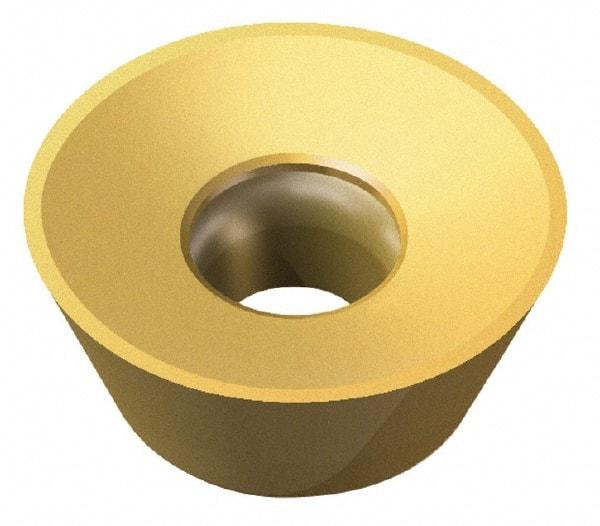

LMT - RCHX1606M0 TR Grade LC240T Carbide Milling Insert - TiAlN/TiN Finish, 1/4" Thick, 0.63" Inscribed Circle
Item #: 83710988
Brand: LMT
Model #: 60141
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCHX |
| Insert Size | 1606M0 |
| Material | Carbide |
| Material Grade | C5/C6 |
| Manufacturer's Grade | LC240T |
| Coating | TiAlN/TiN |
| Inscribed Circle (Decimal Inch) | 0.6300 |
| Thickness (Decimal Inch) | 0.2500 |
| Hole Diameter (Decimal Inch) | 0.2280 |
| Relief Angle | 7.000 |
| Coating Process | PVD |
| Included Angle | 23 |
| Shape | Round |
| Chipbreaker | TR |
