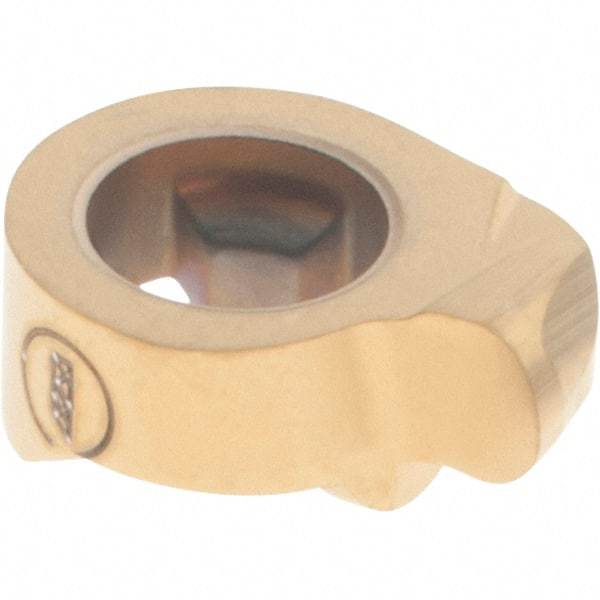

Iscar - 11300R150GIQL Grade IC528, 3mm Cutting Width Carbide Grooving Insert - 2.3mm Max Depth of Cut, Left Hand, 1.5mm Corner Radius, TiCN/TiN Finish
Item #: 83685768
Brand: Iscar
Model #: 6402668
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIQL |
| Insert Size | 11300R150 |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 2.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.0906 |
| Manufacturer's Grade | IC528 |
| Coating | TiCN/TiN |
| Insert Hand | Left Hand |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring; Profiling |
| Corner Radius (mm) | 1.50 |
| Corner Radius (Decimal Inch) | 0.0591 |
| Coating Process | PVD |
| Overall Length (mm) | 10.68 |
| Overall Length (Decimal Inch) | 0.4205 |
| Series | ChamGroove |
