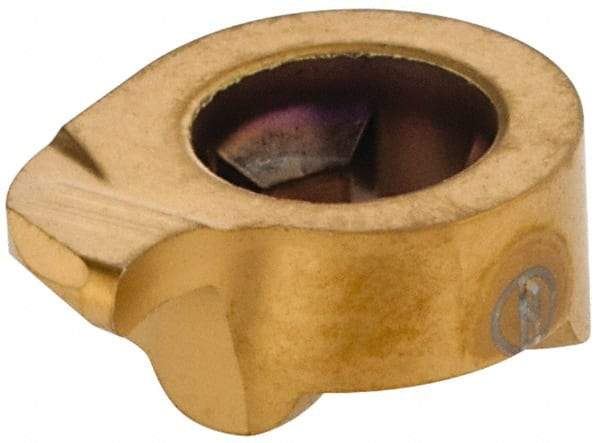

Iscar - 11-1.20GIQR Grade IC528, 1.2mm Cutting Width Carbide Grooving Insert - 0.6mm Max Depth of Cut, Right Hand, 0.6mm Corner Radius, TiCN/TiN Finish
Item #: 83685594
Brand: Iscar
Model #: 6402632
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIQR |
| Insert Size | 11-1.20 |
| Material | Carbide |
| Cutting Width (mm) | 1.20 |
| Cutting Width (Decimal Inch) | 0.0472 |
| Maximum Depth of Cut (mm) | 0.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.0236 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | IC528 |
| Coating | TiCN/TiN |
| Insert Hand | Right Hand |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.60 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Coating Process | PVD |
| Overall Length (mm) | 10.68 |
| Overall Length (Decimal Inch) | 0.4205 |
| Manufacturers Catalog Number | GIQR 11-1.20-R060 |
