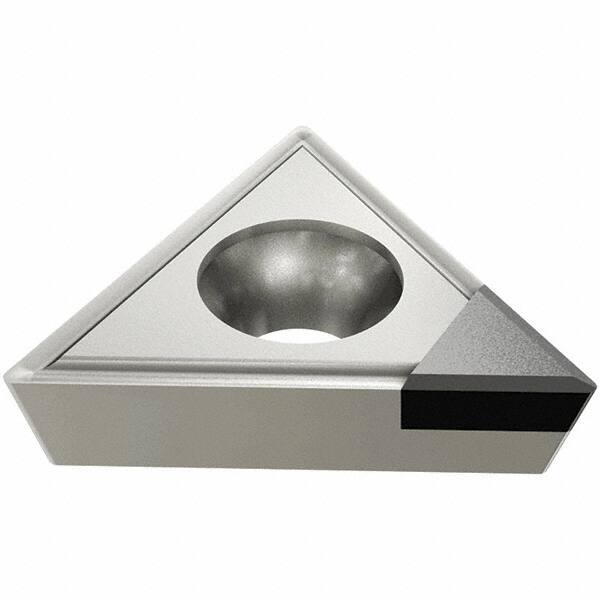

Iscar - TPGX730 Grade IB50 CBN Turning Insert - 60° Triangle, 7/32" Inscr Circle, 3/32" Thick, 0.0079" Corner Radius
Item #: 83685255
Brand: Iscar
Model #: 5700556
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | TPGX |
| Insert Size | 730 |
| Material | CBN |
| Length (mm) | 9.52 |
| Length (Decimal Inch) | 0.3748 |
| Inscribed Circle (Decimal Inch) | 0.2189 |
| Inscribed Circle (Inch) | 7/32 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | IB50 |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Decimal Inch) | 0.0984 |
| Relief Angle | 11 |
| Included Angle | 60 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 0.05 |
| Maximum Depth of Cut (Decimal Inch) | 0.0020 |
| Insert Holding Method | Screw |
| Shape | Triangle |
